The process of applying paint to a screen printing plate using a squeegee.

What is a Screen Printing Plate? Structure, Components, Terminology, and Quality-Determining Parameters.

Posted on 16 January 2026 by Dogukan Cetinkaya | 628 Views

Screen printing plate, The stencil is the most critical production tool in the screen printing process: a technical system that enables the reproduction of the design with ink, allowing for controlled transfer by making certain areas "open" and certain areas "closed" to ink. In workshop terminology, when the word "stencil" is used, it is often spoken of as if it were a single piece; however, in practice, the stencil is..., The stencil is formed by framing, mesh (silk/screen) + emulsion (photosensitive coating) + film/positive + exposure and washing. It consists of a combination of components. Each of these components directly affects the edge sharpness, detail capacity, opacity, color consistency, efficiency, and repeatability of the print. Therefore, correctly understanding the concept of a "screen printing plate" is actually a prerequisite for managing the entire screen printing process.

For a quick overview of the basics of this topic, here's a link to content that looks at the general logic of screen printing:

Screen Printing Plate Logic: Managing Ink Permeability

In screen printing, the ink is pushed across the mesh surface by a squeegee, and only then... from open pores It transfers to the bottom surface. The areas of the design to be "printed" consist of regions where the pores are left open; the areas not to be printed consist of regions where the emulsion hardens and closes the pores. Therefore, the mold is, in a way, a "print map": Which points will the paint pass through, and which points won't? The accuracy and stability of this map determine the consequences of production, such as time loss, waste, color deviation, and loss of detail.

There is a very important concept that connects this basic logic to the production side: registration. In multi-color printing, a separate mold is prepared for each color, and the molds must fit perfectly on top of each other on the product. Therefore, the screen printing mold not only carries the design but also... alignment accuracy And mechanical stability It provides. As the workshop scale increases, this subject ceases to be "art" and becomes "process engineering".

To see the relationship between molding, machinery, and processes from a broader perspective:

1) Framework: Stability, Stress, and Process Repeatability

The main support of the mold frameThe frame ensures even mesh tension and maintains this tension throughout the print. If the mesh tension drops, the screen "wobbles" during printing, lines thicken, edges soften, halftones become distorted, and registration shifts begin. Therefore, frame selection is not just a matter of "size"; rigidity, linear stability, corner connections, surface flatness, and stress-carrying capacity. It is directly related to parameters such as these.

In practice, two main options stand out when it comes to frame materials: aluminum And metal. Aluminum frames are advantageous in high-volume production due to their lightness and corrosion resistance. Metal frames, on the other hand, may offer a cost advantage in certain sizes. To technically understand which makes more sense in which situation:

If you'd like to make your frame/mold selection more concrete using product samples:

An important semantic distinction here is that "plate size" and "printing area" are not the same thing. The inner dimensions of the frame require a margin for the design area; also, allowances are left for squeegee movement and ink collection area. When a large design is forced into a small frame, ink distribution is disrupted, the squeegee smudges during rotation, and edge defects increase. Therefore, when choosing a screen printing plate, the question of "how many centimeters is the design?" should be asked as much as "what is the production flow?".

2) Mesh (Silk/Screened): Detail, Dye Transfer, and Visual Results.

Mesh is the “filter” layer of the printing plate. As the mesh number increases (tighter weave), the pores become smaller; this means finer detail, sharper lines, and more controlled halftones. However, as the pores decrease, ink transfer decreases; opacity may decrease, and with some inks, the print may appear “dry.” At lower mesh numbers, more ink passes through; opacity increases, but the detail capacity may be limited. This balance is the clearest example of why the screen printing plate needs to be “optimized for the job.”.

A systematic guide to mesh selection:

One of the areas where users get most confused from a semantic perspective is this: "The higher the mesh, the better." This generalization is incorrect. For example, in a job requiring a dense ink film, if the mesh is excessively high, ink transfer will decrease, achieving opacity on the product will become difficult, and the tendency to clog will increase as the number of prints increases. Conversely, in halftone, photorealistic jobs, if the mesh is kept low, the halftone dots will merge, the image will become muddy, and detail will be lost. Therefore, the screen printing plate; Design type (vector line, halftone, solid area?), paint type (water-based, plastisol, etc.), surface (textile, paper, plastic), production speed, and target quality. It should be structured accordingly.

3) Emulsion: Stencil durability, edge sharpness, and resistance to defects.

Emulsion is a light-sensitive chemical layer coated onto the mesh. It hardens upon exposure (UV light); in areas that are black on the film, the emulsion does not harden and breaks down during washing because the areas block light. This creates open channels for the design. The thickness of the emulsion, the coating technique, and the drying conditions determine both the durability and detail capacity of the stencil. A thicker emulsion may be more durable but may make fine details difficult; a very thin emulsion may be good for detail but may be more prone to cracking in long print runs.

For exposure logic and pattern setting:

Typical emulsion problems that "kill quality" in screen printing, specifically regarding printing plates, are as follows:

  • Pinholing (pinhole): Unwanted tiny dots appear in the print, especially visible on flat surfaces.
  • Underexposure: The emulsion doesn't harden enough; details "come off" during washing, and the print deteriorates quickly.
  • Overexposure: The design becomes difficult to unlock; fine details may not be revealed.
  • Edge breakage: During printing, the stencil edges fray; the lines become jagged.

One example of content that expands on this error logic at the workshop level is as follows:

4) Film (Positive): Opacity, Sharpness, and Accurate Field Separation

Another key factor determining mold quality positive filmIf the true opacity of the black areas in the film is insufficient, light will leak through, and the bright areas where the design should be will partially harden; this creates problems that do not come out in developing and lead to loss of detail. Factors such as the resolution of the film output, line edge sharpness, and the clarity of halftone dots determine the success of the plate, especially in very fine work.

A direct guide to the film output process:

At this stage, another semantic concept comes into play: positive density (Dmax). In practice, workshops describe this as "is the film's black dark enough?" If Dmax is insufficient, adjusting the exposure time seems like a temporary solution, but often the problem worsens: increasing the exposure time increases the loss of detail in brighter areas; decreasing it reduces durability. The correct approach is to consider film quality and exposure calibration together.

5) Squeegee, Paint, and Flow: Parameters that Complete the Mold's Performance in the Field

The screen printing plate is "operated" by a squeegee during printing. Squeegee hardness (durometer), squeegee blade sharpness, angle, and pressure all affect the thickness of the ink film produced by the plate and the sharpness of the edges. The same plate can produce different results with different squeegee settings. Furthermore, ink viscosity, ambient temperature, and drying speed are decisive factors in plate clogging and print stability.

Examples of relevant products:

Another issue linking mold performance to the production line is the drying/fixing stage. Even if paint transfer is correct, if drying is not done correctly, durability will decrease, cracking or bleeding during washing will occur. The following content completes the context for the drying infrastructure:

Product-related example:

Why is a screen printing plate considered a "process standard"?

Screen printing plates are not a one-time tool; if well-designed... It is a standardizable production asset.. When you need to print the same design again months later, recording the frame size, mesh selection, emulsion type/thickness, exposure time, developing procedure, and squeegee settings will result in more stable results. This approach is critical for the growth of the workshop, ensuring different operators achieve the same quality, and maintaining customer satisfaction. For those who want to establish this standard, here is a guide offering a "workshop setup" perspective:

External Resources (For Understanding the Concept of Screen Printing Plates within a Universal Context)

It would be beneficial to support the historical/technical framework of screen printing plates with international sources. The following links are referenced in terms of process, terminology, and basic principles:

How to Prepare a Screen Printing Plate? Step-by-Step Application, Exposure Logic, Retouching, and Production Standards.

In screen printing, "mold making" is not a single process; it's a series of steps, each directly influencing the next. a controlled process chainScreen printing plates, if not prepared correctly, inevitably lead to problems such as clogging, loss of detail, edge breakage, pinholing, color deviation, registration errors, and a short print life. However, when prepared correctly, the reproduction of the same design, the same Pantone target, the same opacity, and the same edge sharpness become much more predictable. The aim of this section is to transform screen printing plates from a "theoretical description" into a practical, workshop-applicable process. standard operating procedure (SOP) It is about treating it as such.

To understand the process from the perspective of screen printing frames (materials and frame types), let's reconnect to the previous reference here:

Also to reinforce the general context of machines and mechanisms:

1) Preparation: Preparing the Frame and Mesh for Printing (Cleaning + Degreasing)

The first critical issue in screen printing plate preparation surface cleaningIf there is invisible oil, dust, silicone residue, fingerprints, or chemical residue on the mesh, the emulsion will not adhere homogeneously to the mesh; this leads to problems such as "bunching" after exposure, uncontrolled delamination during washing, or premature deterioration of the print. Therefore, in a professional approach, the plate preparation chain always begins with "degreasing".

A common mistake at this stage is thinking, "The mold is new and clean." Even new mesh can contain surface contamination from production/transportation. Furthermore, old molds can leave chemical residue if they weren't properly rinsed after reclaiming. Therefore, the SOP should be as follows:

  • Degrease the mesh with a suitable cleaner.
  • Rinse thoroughly with plenty of water, ensuring no foam or odor remains.
  • Ensure complete drying (especially corners and the inner edges of the frame).

If this step is skipped, the answer to the question "why is there a pinhole?" in subsequent steps often lies here. To read the error perspective more broadly:

2) Emulsion Coating: Homogeneous Film Thickness and Two-Sided Logic

Emulsion coating is the primary step that determines the stencil quality of a screen printing plate. There are two important objectives here:

  1. Homogeneous thickness (absence of waves, lines, or accumulations)
  2. Suitable stencil thickness (Depending on the job; fine detail or thick paint film?)

In practice, most workshops use a "double-sided coating" approach: the squeegee side and the printing side. Without going into too much technical detail, you can understand the logic as follows: the smoother and more controlled the emulsion surface on the printing side, the better the edge sharpness during printing. The squeegee side, on the other hand, mainly affects durability and transfer behavior. Therefore, although single-sided coating may suffice in some jobs, if stable quality is targeted in production, double-sided coating is usually applied in a balanced manner.

The following guide is a direct reference for correctly calibrating exposure and emulsion behavior:

Common mistake: Applying the emulsion too thickly, while partly true in the sense that it will "make it more durable," can lead to problems such as obscured fine lines, dot enlargement in halftones, difficulty in washing, and "soft edges" in printing. Similarly, excessively thin emulsion can cause stencil breakage and deformation during printing in long runs. Therefore, in screen printing plate preparation, the thickness should be determined according to the "design + ink + surface" combination of each job.

3) Drying: Moisture Management and Exposure Stability

After the emulsion is applied, the mold needs to dry properly. Drying is not just about "hardening the emulsion"; it is also... balancing humidity and the stabilization of light behavior during exposure. A damp emulsion reduces exposure quality; it can cause uncontrolled delamination or poor durability during washing.

Two points that require particular attention during the drying stage:

  • Dust-free environment: The powder particles are embedded in the emulsion, creating pinhole or stencil surface irregularities.
  • Smooth airflow: “Using excessive heat or improper airflow in an attempt to "speed up drying" can cause tension differences on the emulsion surface.

To learn more about drying infrastructure and drying management in the production flow from a broader perspective:

Product sample (to standardize the post-printing drying process as well):

At this point, the "screen printing plate" and the "drying rack" are directly linked: even if the plate is good, the result will appear unsuccessful if proper drying after printing is not done. Production processes must be optimized together.

4) Film Preparation and Layout: Opacity, Sharpness, Recording Marks

Positive film is the "design reference" for the screen printing plate. The film requires sufficient opacity of black areas and sharp edges. Additionally, in multi-color jobs, the film must have certain features. registration signs (Registration marks) must be present, and the same reference points must be used on the film for each color.

To standardize the film output process:

Common mistake: The blacks in the film remain "gray." This leads to light leakage and makes the design harsher than it should be; fine details, in particular, are not revealed. Increasing or decreasing the exposure time can sometimes mask this problem, but the correct solution is to calibrate the film opacity and the exposure system together.

5) Exposure: Duration, Distance, Light Intensity, and Test Strips

Exposure is the critical stage where the emulsion cures with UV light. In screen printing, “correct exposure” achieves two opposing goals simultaneously:

  • Areas hidden beneath the film's blacks weak enough to not open fully should stay
  • All other areas strong enough to withstand pressure hardened

A reference that addresses the logic behind exposure settings within a practical framework:

In professional exposure testing, "testing" is more important than "guessing," especially when using new emulsions, new meshes, new light sources, or different film densities. exposure test strips The optimum time should be determined using a step-by-step wedge test. This testing culture transforms screen printing from a "master secret" into a repeatable production standard.

6) Washing and Opening: Pressure Management, Detail Protection

After exposure, the stencil is washed, and the black areas on the film are opened up to create paint transfer channels. The key here is not to "force open areas that won't open," but to obtain a stencil that is already openable through proper exposure. Excessive water pressure can cause the stencil to tear or deform the edges, especially in fine details.

Typical error scenarios during the washing phase:

  • Breaking of fine lines (usually due to underexposure + aggressive washing)
  • Failure to reveal fine details (usually due to overexposure or film opacity issues)
  • Surface roughness and pinholes (usually a cleaning/drying medium defect or emulsion coating error)

This page examines these errors from a broader perspective:

7) Retouching and Blocking: Pinhole Closure and Edge Cleaning

Checking the mold under light after washing is a critical quality step. This check involves:

  • Is there a pinhole?
  • Are there any unwanted openings at the edges?
  • Aside from the design, are there any "micro-openings" that could allow paint to leak?

At this point, retouching and blocking operations are performed. But here too, discipline is required: Retouching with a "let me cover everything up" reflex can spoil the detail and edge sharpness of the design. However, not retouching at all can lead to surprises in production. In screen printing plate quality standards, retouching should be applied in a controlled, documented manner and with minimum intervention.

8) Printing: Registration Setup, Machine Selection, and Machine Compatibility

Once the printing plate is prepared, the real test begins: connecting it correctly to the printing setup (machine, apparatus, manual/semi-automatic/automatic system) and configuring the registration settings. Here, the mechanical compatibility of the screen printing plate is crucial. For example, multi-arm machines (octopus) or machines with specific stations are preferred for multi-color jobs.

To improve the editing/printing side of blog content:

Examples of printing setups on the product side:

9) Durability in Production: Drying/Fixing and Post-Printing Process

Even if the mold is correctly prepared, proper drying or fixation of the dye is necessary for the print to be permanent. Especially in textiles, systems like conveyor dryers and fixing tunnels raise the production standard for durability targets.

In terms of subject matter:

Product example:

External Links: References for Universal Definitions and Terminology

To support the terminology and process approach used in this section with international sources, the following external resources are also useful:

The Most Common Errors in Screen Printing Plates: Root Cause Analysis, Process Optimization, and Correct Equipment Selection.

Preparing a screen printing plate is just as important as..., to ensure the mold remains stable throughout the production process This is the fundamental difference between professional screen printing operations. Most of the problems summarized in workshops as "the plate is out but the print is bad" actually stem from a small deviation in a single step of the plate making process, which grows during printing and results in a loss of quality. Therefore, in Chapter 3, we will examine the most common types of errors associated with screen printing plates; root cause analysis, I approach this from the perspective of measurable control points and production line optimization. The goal is not just to “identify” the error; it is to standardize the process in a way that prevents the same error from recurring.

For a broader perspective on the subject, the screen printing defects guide provides a good reference:

Also, to understand the effect of machine/setting deviations on the mold and printing:

1) Pinholes and Micro-openings: It's not about "mold being punched," it's about process contamination.

Pinhole, Pinholes appear as tiny, unwanted ink dots in the print and instantly reduce the perception of quality, especially in flat, solid areas. Although pinhole problems in screen printing plates are often interpreted as "emulsion defects," in practice the most common root causes are:

  • Insufficient degreasing/cleaning: The invisible layer of oil remaining on the mesh impairs the adhesion of the emulsion.
  • Dusty drying environment: As the emulsion dries, the powder particles deposited on the surface create micro-channels after washing.
  • Weak rinse: Chemical residues can create micro-voids in the emulsion film.
  • Old/unsuitable emulsion: Emulsion stored under poor conditions will not form a homogeneous film.

Checkpoint: After the emulsion has dried, scan the plate under strong light; pinholes can be closed with retouching/blocking before printing. However, retouching is a "treatment"; the real goal is to eliminate the condition that caused the pinhole.

To expand on this error heading from a general errors perspective:

2) Underexposure: The mold opens but doesn't hold.

Underexposure is one of the most costly errors in screen printing because it initially appears "good": the plate opens quickly, and the details seem to come out. However, once it goes into production, the stencil is weak; it quickly... edge breakage, Then, “design breakage,” line distortion, and paint bleeding begin.

Typical symptoms:

  • The edges of the design lift easily during washing.
  • The stencil "softens" during printing, and the edges become jagged.
  • Rapid deterioration in long-term circulation.

Root causes:

  • Insufficient exposure time.
  • Weakening of the UV light source (lamp obsolescence)
  • The emulsion thickness is greater than expected (requiring more time).
  • Low film opacity (light leaks; behavior becomes complicated)

Main reference for exposure calibration:

Process suggestion: Use a test strip instead of "guessing" the exposure time. Finding and recording the optimum time with the same mesh + same emulsion + same film + same lighting setup makes screen printing repeatable.

3) Overexposure: The image holds, but the details die.

Overexposure causes significant quality loss, especially in fine detail, small text, halftones, and other applications. The plate remains durable, but the channels that should remain open are “partially closed” and do not open during developing.

Typical symptoms:

  • Some parts of the design should not be opened at all.
  • The breaking or disappearance of fine lines
  • A dot gain-like appearance in trams.

Root causes:

  • Long exposure time
  • The film density is poor (if the positive blacks don't provide enough coverage).
  • The emulsion being too thin (in some systems the light may behave more aggressively)

Regarding film output and opacity:

4) Edge Sharpness Issues: The Anatomy of the Complaint "Designs Come Out Soft"

Factors that compromise edge sharpness in screen printing are not limited solely to plate steps; printing parameters and machine settings also have a direct impact.

Mold-related reasons:

  • Wave/line formation in emulsion coating.
  • Poor film-mesh contact (lack of vacuum or contact error)
  • Light dispersion during exposure (irregular light area)

Reasons related to pressure:

  • Excessive squeegee pressure (paint spreads)
  • Incorrect squeegee angle
  • Low mesh tension (mesh bounce)

To systematically analyze the impact of machine setup errors on quality:

Examples of squeegees and related consumables:

5) Mesh Clogging and Dye Flow Problems: The Most Critical Issue in Water-Based Paints

Especially in water-based systems (and fast-drying inks) for screen printing plates. pore blockage It is the enemy of printing. Even if the plate is prepared correctly, the ink dries on the mesh during printing, clogs the pores, and the transfer falls apart.

Symptoms:

  • Opacity decreases as printing progresses.
  • "Missing transfer" in some areas of the design.“
  • Textured appearance on the print surface.

Root causes:

  • Ambient temperature and low humidity
  • The paint dries quickly.
  • Reduced printing speed (waiting times)
  • Failure to use an appropriate delay spray

Product sample (for flow control):

This topic is also important from the perspective of "which ink is used in screen printing"; the type of ink determines the tendency of the plate to clog and the process window.

6) Registration Problems: Pattern Management in Multi-Color Jobs

Even if a screen printing plate is "correct on its own" in multi-color printing, registration problems will occur if it is not managed as a set. Registration problems generally occur along the following lines:

  • Lack of standardization of frame dimensions or attachment points.
  • Mesh tensions differ between colors.
  • Poor stability of the printing table/workbench.
  • Inconsistencies in the operator's printing sequence and drying waiting times.

For a colorful workbench design and production approach:

Product examples:

7) Extending Mold Life: Proper Drying/Fixing and Post-Production Inspection

When proper drying is not done after printing, most workshops attribute the problem to a "plate defect." However, sometimes the problem is that the ink has not fully cured. This leads to complaints from the customer such as bleeding/cracking during washing, and the workshop has to take on more work. The screen printing plate and the drying line should be considered together.

Drying and fixing frame:

Product example:

For post-press intermediate drying setup:

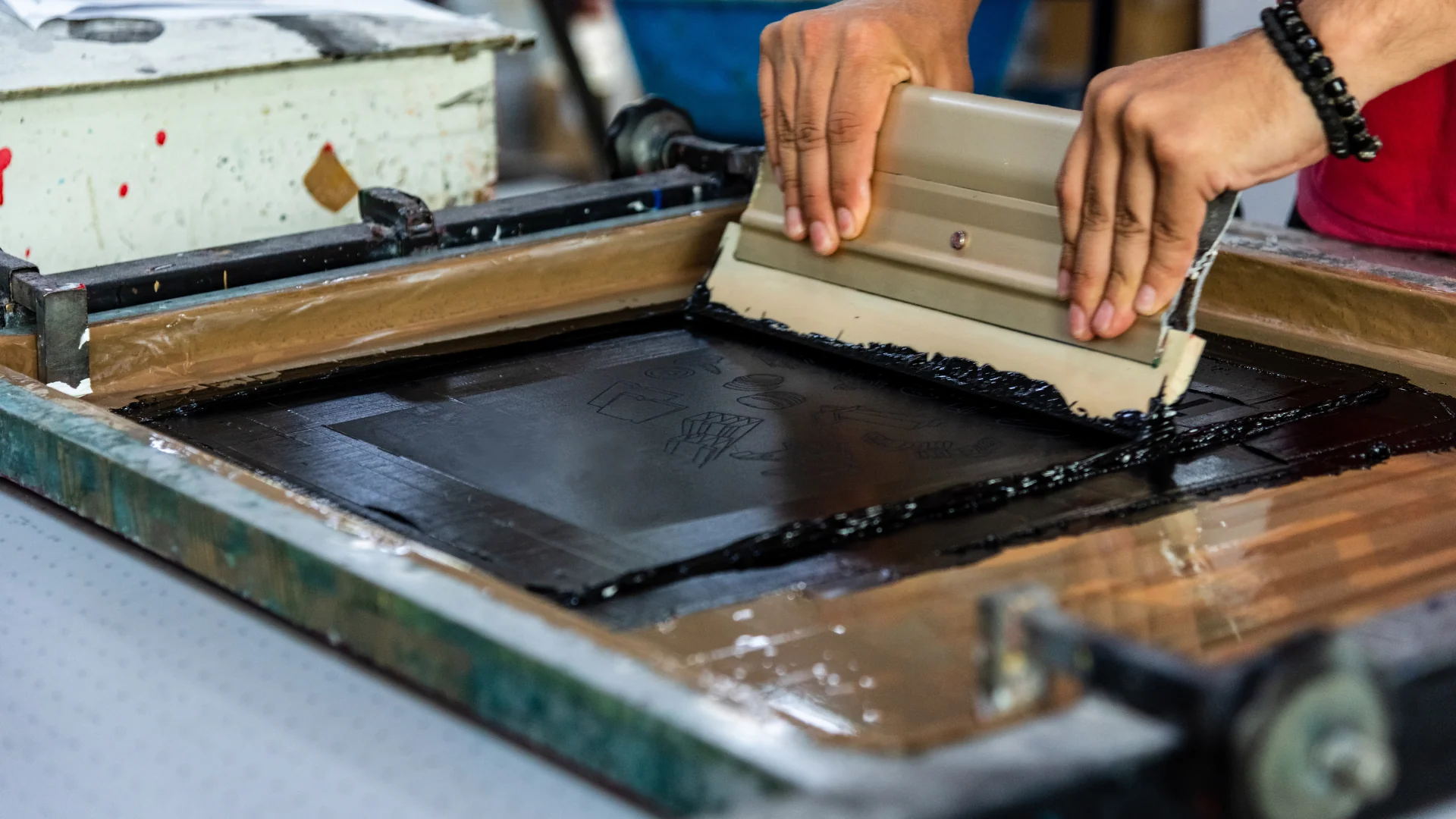

The process of applying paint to a screen printing plate using a squeegee.
Screen printing plate: The process of applying paint with a squeegee.

FAQ: Frequently Asked Questions About Screen Printing Plates

1) What is a screen printing plate?

Screen printing plate; frame + mesh (silk/screen) + emulsion (photosensitive coating) + film (positive) It is a printing tool created with its components, allowing paint to pass only through the design areas. The open/closed areas of the design are determined by exposure-wash; the paint is transferred to the surface through the open pores with the squeegee. For general concepts: https://www.okangokhan.com/serigrafi-nedir-2025-rehberi/

2) Which frame is better for screen printing stencils: aluminum or metal?

In terms of production stability and corrosion resistance. aluminum Frames are generally advantageous; however, this depends on size, budget, and usage intensity. metal Frames are also an option. Detailed comparison of material differences: https://www.okangokhan.com/aluminyum-ile-metal-kalip/
Example products:

3) How does mesh (silk) selection affect the screen printing plate?

As the mesh count increases, the pores become smaller; finer details it is taken but paint transfer It may decrease. Paint transfer increases at lower mesh sizes; opacity increases, but limitations may be encountered in very fine detail. Mesh selection guide: https://www.okangokhan.com/serigrafi-mesh-ipek-secimi/

4) Why doesn't the emulsion hold, why does the mold break during washing?

The most common causes are: insufficient fat intake, These include dampness/improper drying, incorrect exposure (especially underexposure), old emulsion, or incorrect coating thickness. For exposure adjustment: https://www.okangokhan.com/serigrafi-kalip-pozlama-ayarlari/
General error list: https://www.okangokhan.com/serigrafi-baski-hatalari/

5) How to set the exposure time correctly?

There is no single “fixed duration”; duration light intensity, distance, emulsion thickness, mesh and film opacityIt depends on it. The correct approach is to use the same system. test strip The goal is to find the optimum time and record it. Guide: https://www.okangokhan.com/serigrafi-kalip-pozlama-ayarlari/

6) How does film (positive) quality affect the mold?

If the film's blacks aren't opaque enough, light will leak; areas where the design needs to be opened up will become partially hardened, and Details will not be revealed.. Sharp edges and the correct density are critical elements for a clear stencil. Film output guide: https://www.okangokhan.com/serigrafi-film-cikisi/

7) What causes pinholes and how can they be prevented?

Pinhole usually dusty drying environment, This is caused by insufficient cleaning/degreasing, uneven emulsion coating, or chemical residue. The solution is to seal it with a touch-up before use. root cause The goal is to eliminate it. Error guide: https://www.okangokhan.com/serigrafi-baski-hatalari/

8) The printing plate is getting clogged; the ink isn't flowing. What's the reason?

Clogging, especially with fast-drying paints, is caused by environmental conditions (temperature/low humidity), waiting times between printing, incorrect viscosity, or the use of inappropriate retarders. Product examples:

9) Does squeegee selection change the final result from the screen printing plate?

Yes. Squeegee hardness (durometer), edge sharpness, angle, and pressure directly affect paint film thickness and edge sharpness. Suitable squeegee products:

10) How to maintain registration stability in multi-color printing?

Record stability depends on the consistency of frame standard, mesh tension, machine stability, and operator procedures. The impact of machine setup errors: https://www.okangokhan.com/serigrafi-baski-makinesi-ayar-hatalari/
A colorful countertop approach: https://www.okangokhan.com/ahtapot-baski-makinasi-rehberi/
Example workbench: https://www.okangokhan.com/urun/tisort-baski-tezgahi/

11) How can the lifespan of screen printing plates be extended?

In addition to correct exposure, correct emulsion thickness, appropriate washing pressure, correct squeegee setting during printing, and post-printing cleaning discipline, correct drying/fixing on the production line is also important. Drying processes:

12) What are some reliable external sources for information about screen printing plates?

The following resources can be used as references for terminology and process logic:

Posted in: aluminum frame printing errors paint transfer frame multicolored screen printing sieve voltage emulsion coating fixation tunnel silk (mesh) number mold defects mold blockage registration settings conveyor dryer drying rack metal frame pinhole positive film squeegee squeegee rubber screen printing workshop screen printing plate screen printing machine screen printing equipment screen printing emulsion screen printing film output screen printing stencil screen printing stencil preparation screen printing plate exposure screen printing stencil making screen printing mesh selection screen printing exposure time textile printing t-shirt screen printing

Doğukan Çetinkaya has been working at OkanGökhan Serigrafi Makineleri, a company operating since 1980, since 2021, focusing on business management, screen printing machines, printing equipment, and auxiliary materials. He leads product development, customer needs assessment, and technical content preparation processes.

Leave a Comment
