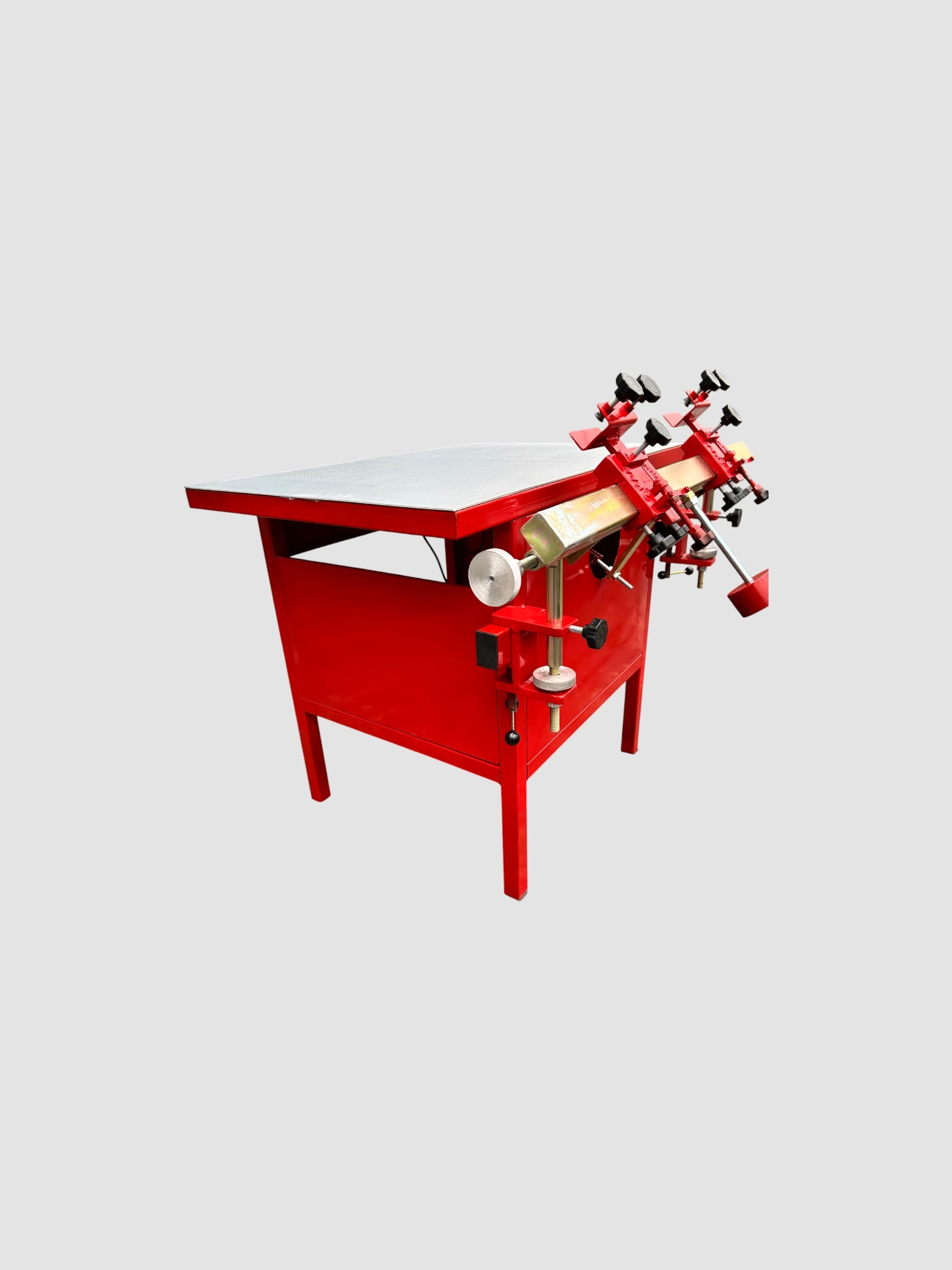

Manual Vacuum Screen Printing Machine

What is a screen printing vacuum manual printing machine?

Screen printing vacuum manual printing machine; It is a professional screen printing machine designed for controlled printing on flat surfaces such as paper, cardboard, plastic sheets, metal, glass, labels, promotional products, and similar materials.

The machine's 50 × 70 cm vacuum area holds the material to be printed securely on the print bed. By reducing material movement during printing, it helps achieve more stable positioning and consistent prints in repetitive jobs.

With a workbench area of 70 × 100 cm, it provides a large working surface for mold placement, material positioning, and fine-tuning operations. In addition to the standard model, custom manufacturing options are available to suit specific job requirements and product dimensions.

Technical Specifications

What is the purpose of a vacuum printing area?

The vacuum system secures the material to be printed by pulling it towards the build plate. This offers a significant advantage, especially for thin, lightweight materials or materials that may move during printing.

Keeping the material stable reduces the movement of the printing surface from adhering to the mold when the mold is lifted. This helps maintain the printing position, lowers the risk of slippage during repeated printing, and allows for more controlled production.

A vacuum system alone does not guarantee quality printing. Correct screen printing plate, paint suitable for the surface, correct mesh and appropriate screen printing squeegee The choice should be evaluated together.

Precise Fine Adjustment and Exposure System

The machine allows for fine adjustments in forward-backward, up-down, and left-right movement. This system helps to precisely position the mold according to the material being printed on.

Once exposure is complete, the settings can be locked. The locking system reduces the risk of unintentional movement of the settings and exposure errors during printing. This feature is particularly important in repetitive jobs where the same design is printed on numerous products.

3 mm Anodized Aluminum Table

The printing plate uses a 3 mm anodized aluminum plate. The anodized surface is suitable for workshop use due to its durability, surface stability, and ease of cleaning.

A smooth build plate surface helps to ensure even placement of the material to be printed. When cleaning the build plate, harsh and incompatible chemicals that could damage the surface should be avoided.

What surfaces can be printed on?

The screen printing vacuum manual printing machine can be used in the following flat surface applications:

• Paper and cardboard prints
• Plastic sheets and plastic products
• Metal plates and machine panels
• Glass and flat surface products
• Label and sticker applications
• Promotional products
• Electronic panels and control surfaces
• Advertising and directional signs
• Packaging and box surfaces
• Various industrial flat surface applications.

The paint, mesh, emulsion, squeegee, and drying method must also be determined according to the surface to be printed on. To compare other machine options... screen printing machines You can check it out.

Who is it suitable for?

• Screen printing workshops
• Advertising and signage manufacturers
• Packaging and label manufacturers
• Businesses that print on plastic, metal, and glass.
• Electronic and industrial panel manufacturers
• Companies that produce in low to medium volumes
• Manufacturers who need custom machines of different sizes.

For high-volume jobs requiring fully automated production speed, automatic or semi-automatic systems may be more suitable. When selecting a machine, the print size, surface type, daily production volume, and required precision should be evaluated together.

The Difference Between Vacuum and Non-Vacuum Printing Machines

Vacuum models are preferred for securing thin and movable printing materials on the table. Non-vacuum machines, on the other hand, can be used in applications where the material can be secured by different methods or where vacuum is not required.

For longer printing surfaces 70 × 200 vacuum manual printing machine, For wide range of applications that do not require vacuum. 80 × 250 vacuum-free manual printing machine You can check it out.

Custom Size Screen Printing Machine Manufacturing

The standard model has a 70 × 100 cm workbench and a 50 × 70 cm vacuum printing area. Custom sizes can be produced to meet the needs of businesses that require printing on products of different dimensions.

The following information must be shared when requesting a custom order:

• External dimensions of the product to be printed.
• Maximum required printing area
• The dimensions of the mold to be used.
• The material of the surface to be printed on.
• Daily or monthly production quantity
• Need for a vacuum area
• Available workspace in the workshop

Based on this information, the appropriate table, vacuum area, and machine dimensions can be determined.

Post-Printing Drying

The drying method to be used after printing should be selected according to the ink system, printing surface, and production speed. For suitable equipment options, see below. screen printing drying systems You can check it out.

Delivery, Warranty and Technical Support

The screen printing vacuum manual printing machine is prepared according to stock and production plans. Current production and delivery times will be communicated before ordering.

The product can be packaged and shipped via cargo or warehouse according to the delivery address and transportation conditions. The shipping method and cost will be clarified before the order.

The machine comes with a 2-year warranty. For information on product selection, custom size production, usage, and technical support, please contact us. You can contact OkanGökhan Makina..
